The unit is double walled constructed , inner &outer seamless cylinder container, argon welded condenser
& multi baffle all fabricated stainless steel provided with a safety eject able immersion heater. The inlet
water passing into the Barnstead Still flow around the outside of the condenser tube where it reaches nearly
to the boiling point. The heater water passes to the evaporator through the water level pipe and the excess
water is drained through drain out. In the evaporator the water is converted in to pure, clean dry steam
which rises through the baffle and passes over into the condenser tube where it is condensed into distilled
water. Drainage outlet is also provided.

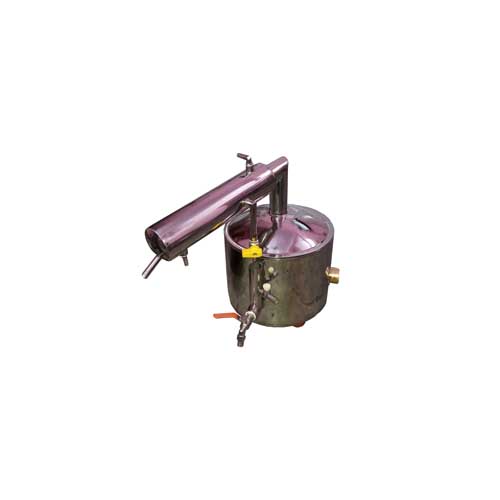

Water Still
| Cat. No. | Capacity | Watts | External Dimensions L X B X H cm |
Weight
Kg |
| KI-39-01 | 2 Litr/hr. | 1.5 KW | 25 x 25 x 38 | 10 |
| KI-39-02 | 4 Litr/hr. | 3.0 KW | 30 x 30 x 45 | 12 |
| KI-39-04 | 10 Litr/hr | 6.0 KW | 35 x 35 x 55 | 15 |
| KI-39-04A | 15 Litr/hr | 9.0 KW | 45 x 45 x 65 | 20 |
| KI-39-05 | 20 Litr/hr | 12.0 KW | 55 x 55 x 75 | 25 |
| KI-39-06 | 25 Litr/hr. | 15.0 KW | 65 x 65 x 80 | 35 |
