Double Walled Construction S.S.304 Grade Rectangular Interior, Exterior Made of CRCA Sheet Finished in Epoxy
Paint Dual Coated Vacuum up to 760 mm ( -30”) of Hg. Unit is fitted with vacuum gauge. Supplied without Vacuum
pump. Door is fitted with tuffened glass windows for observation. User Friendly Locking System Temperature
Range: 50° C to 200° C Temperature Control: By Micro Controller with Feather Touch Key.(GMP – Model Inner
Chamber S. S. 316 Grade , Outer Chamber S.S.304 Grade, Both Chamber Mirror Finished)

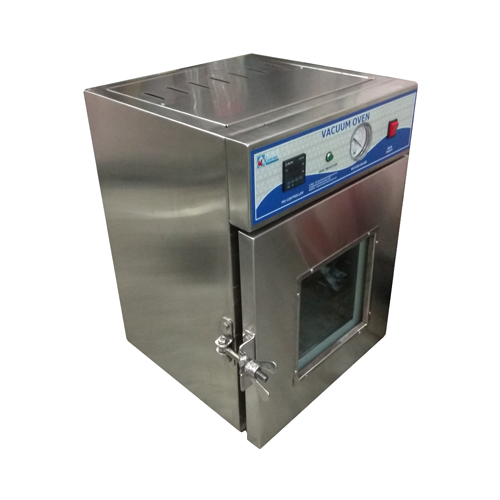

Vacuum Oven(Rectangular)
| Cat. No. | Internal Dimension W X D X H cm |
Temp. Range | No. of S.S. Shelves |
External Dimension W X D X H cm |
Weight Kg |
| KI-06R-01 | 30 X 30 X 30 | 200° C | 1 | 50 x 50 x 70 | 45 |
| KI-06R-02 | 35 X 35 X 35 | 200° C | 2 | 55 x 55 x 75 | 55 |
| KI-06R-03 | 45 X 45 X 45 | 200° C | 2 | 65 x 65 x 85 | 70 |
