Housing Made of Mild Steel Finished with Epoxy Paint Dual Coated Max Temp. Up to 400 Degree with Multi Heating Place, without any Glass Parts

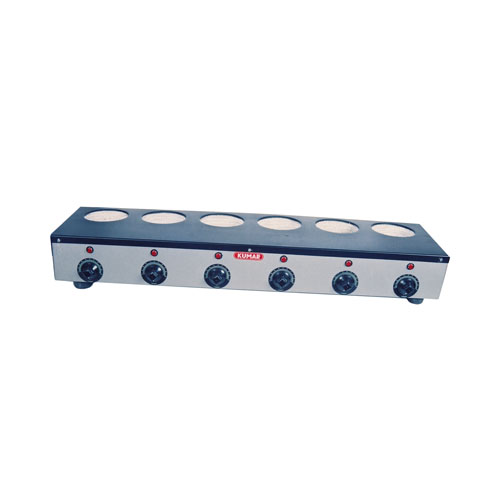

SOXHLET – MANTLE TYPE
| Cat. No. | Flask Capacity
(ML.) |
No. of Flasks |
No. of
Regulators |
No. of Switches |
Total Watts |
External Dimension L X B X H cm |
Weight Kg |
| KI-19-02 | 100-350 | 3 | 1 | 3 | 375 | 55 x 25 x 20 | 5 |
| KI-19-03 | 100-500 | 3 | 1 | 3 | 600 | 55 x 25 x 20 | 5 |
| KI-19-06 | 100-350 | 3 | 3 | – | 375 | 55 x 25 x 20 | 6 |
| KI-19-07 | 100-500 | 3 | 3 | – | 600 | 55 x 25 x 20 | 6 |
| KI-19-10 | 100-350 | 6 | 1 | 6 | 750 | 120 x 25 x 20 | 12 |
| KI-19-11 | 100-500 | 6 | 1 | 6 | 1200 | 120 x 25 x 20 | 12 |
| KI-19-14 | 100-350 | 6 | 6 | – | 750 | 120 x 25 x 20 | 13 |
| KI-19-15 | 100-500 | 6 | 6 | – | 1200 | 120 x 25 x 20 | 13 |
| KI-19-18 | 100-350 | 4 | 1 | 4 | 500 | 95 x 25 x 20 | 7 |
| KI-19-19 | 100-500 | 4 | 1 | 4 | 800 | 95 x 25 x 20 | 7 |
| KI-19-22 | 100-350 | 4 | 4 | – | 500 | 95 x 25 x 20 | 8 |
| KI-19-23 | 100-500 | 4 | 4 | – | 800 | 95 x 25 x 20 | 8 |
